Building the ReAmiga from scratch. Part3

So lets add memory.  This is also a quite tricky part of the ReAmiga project as the distance between the chips is making it harder to handsolder.

This is how I am doing it:
First I tin all pads:

IMG_0282

Add flux ontop of it and put a memorychip on U18 (thats the location of the top).

IMG_0283

and heat it up from above with hot air:

IMG_0285



Sometime I use a tool to push down the chip.  when you see the chip settle, stop the heating to avoid warping of the pcb.

Usually I add extra solder, using this type of tip:

IMG_0286

When this is done. Start the machine and look at the DiagROM output:

Putty3

After $100000 look at the first 4 chars in the hexadecimal code. It should be the same as what it is written. Marked in the picture above.
if this is ok, then U18 is ok and soldered in ok

Now do the same with U16: (4 first chars BEFORE $100000)

IMG_0287

and check DiagROM again:

Putty4

First 4 bytes is the interesting part now.  and as you can see here there is an issue.

Look where it shold be $f0f0  it reads $f0e0. and where it should be $0f0f it reads $0f1f.
doing a check of soldering and fill up some:

Putty5

THATs better.  remember sometimes a bridge here with memory can make machine not start at all. (also a reason why I do this in parts like this. then we know WHERE the reason for nostart is)

Lets do U19: (4 last chars after $100000)

IMG_0288

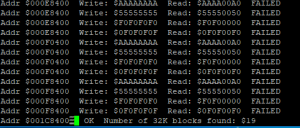

And DiagROM should say:

Putty6

Now after $100000 you will hopefully notice that it starts to count up OK blocks.

Lets do the last memorychip now. U17: (last 4 chars before $100000)

IMG_0289

And check DiagROM:

Putty7

Oh. something looks bad.

Checking soldering, found a bridge

Putty8

now it would be interesting to have something shown on the screen.

Lets add the videoDAC:

IMG_0290

This is the VP101. if you are using the ADV101 you will also need to populate the D215 with a zenerdiode.
and Rev 1.2 on the bottom side under the VideoDAC:

Extra1k

Add a 1K resistor there.  if you have a rev below 1.2 you need to put a resistor on the right pad of C215 (and skip the capacitor..) pointing down and put a jumperwire from other end of resistor to the top pin of D233A or D231A.

Lets go on.

Also add a 74139 at U23:

IMG_0291

now you will get a picture on the RGB port. the diodes should be needed. I need to investigate if they can be skipped. but lets put them there anyway:

IMG_0292

SOME machines can get an issue with diagrom just showing the screenflashing but no picture. then a 74F32 will be needed at U10. (some Amigas had a 74HCT08 here. not checked if that will work aswell) but. also very strange that it seems to be working anyway. even if that chip doesn’t get any power.  so I add a jumpercable to make sure it gets power (and not so much magic involved):

IMG_0293

also on boards BELOW Rev 1.2 you will need a solderblob:

IMG_0295

Between the middle pad and the bottom pad. on rev 1.2 this is not needed as there is a trace going there. but if you have rev 1.1. put a blob there.  on rev 1.0 you will need a small wire from middle pad to the bottom pad (that is not located below but to the right bottom)

to get picture out on the VGA connector you need to add 3 PNP transistors:

IMG_0296

if you decided to NOT use the VGA connector and also skip composite/svideo. you do not need this. then you could also remove all components in that square. as they unfortunally will make the Amiga RGB picture slightly darker.  if you will use Composite/Svideo this must be populated (except the VGA connector)

Now your Amiga should output:

IMG_0297

BUT! it will crash here. This is a scenario I will try to detect in later versions of DiagROM.

to fix it: Populate U26 with a 74LS86:

IMG_0298

And now you should get:

IMG_0299

However on the serialport you will get:

Putty9

Even if you press any key..  the reason is simple.  we need to populate U29 with a 1489 that is handling serial IN:

IMG_0300

and Voila:

Putty10

Now DiagROM got your input and shows the serial console.  now you can control DiagROM through your PCs keyboard. (or remote amiga or whatever you have on the serialport)

Machine starts to live!

IMG_0301
